品牌topshall
型号mpb19-sl5p-frxx-b7-a6
工作电压250v
工作电流5a
3c额定电压范围440v以上
操作方式开启式
触头结构常开按钮
防护方式防水式
额定发热电流5a
接触电阻50ω
绝缘电阻1000mω
头部保护等级a
使用温度85℃
产品认证rohs
电气寿命500000
机械寿命500000次
面板厚度5mm
操作压力2
操作行程2.5mm
螺母扭矩6
加工定制是
货号mpb19-sl5p-frxx-b7-a6
最小包装数100
订货号mpb19-sl5p-frxx-b7-a6
物料编号mpb19-sl5p-frxx-b7-a6
展开
厂家直销19mm指示灯按钮 防水黑壳开关 自锁电源控制金属按钮开关
点我去除广告

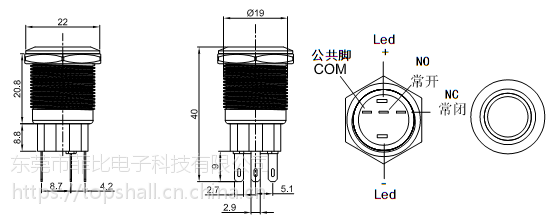

cut out hole:
?19mm
brand:
topshall
model series:
mpb19-r5p-frxx-a6
safety approval:
ce and rohs
rating:
5a/250v
button and case:
brass/ sus black etc
button function:
momentary/latching
base:
pa66
button shape:
flat/high flat
contact:
silver alloy
button color:
could customize
mechanical life:
500000 cycles
button led type:
ring
dielectric life:
200000 cycles
button led color:
r/g/u/y/w/p
operate temperature:
?20-85℃
led lamp volt:
3-220v
nut torque:
5-14nm
lamp life:
50000h
operating stroke:
2.0mm±0.3mm
switch terminals:
5/8pins with 1no1nc/2no2nc
contact resistance:
50m?max
protection level:
ip67 ik09
insulation resistance:
1000m?max
operating pressure:
500gf±100gf
dielectric strength:
2000vac 1am of 1 minute
