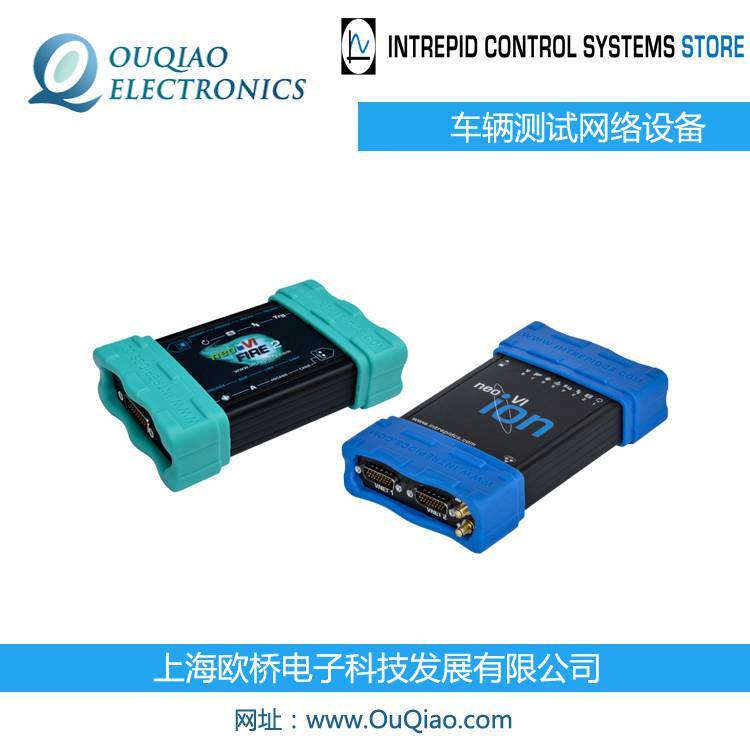

INTREPID CONTROL SYSTEMS NEOVI FIRE 2 车辆网络接口?英特佩斯 INTREPID

品牌：INTREPID CONTROL SYSTEMS

型号：NEOVI FIRE 2

Intrepid Control Systems是一家私营公司，位于密歇根州底特律郊区。Intrepid专注于提供高科技计算机软硬件服务和产品。

公司成立于1994年7月8日，1996年6月18日在密歇根州合法注册成立。在过去二十年中，该公司完成了许多工程项目。它还开发并成功销售了许多产品，每年都会增加产品组合。

产品参数：

General Specifications

Fourth-generation neoVI architecture: over 10x the performance of earlier devices

Low power consumption

Power Supply: 4.5-40V operation

LED membrane keypad: 10 full-color LEDs indicate network status; 2 LEDs for legacy status; 2 user buttons

Temperature Range: -40°C to 85°C

On-board UPS power supply for safe shutdown of data logger

Vehicle connectors: 26-pin male HD D-Sub and 9-pin micro D-Sub

One-year limited warranty

Field-upgradeable flash firmware

General purpose I/O: 2 MISC IO (0-40V) - can be configured as Analog/PWMIO

General purpose I/O rate report interval: 10 Hz to 1 kHz, or based on digital change

Microsoft-certified USB drivers

USB Host for neoVI MIC GPS or powering RAD-Moon accessory

Isolated high speed (480 Mb/s) USB

Standalone mode Including scripting, receive messages, transmit messages, expressions, I/O and transport?

layers

J2534 and RP1210 A/B compatible for CAN/ISO15765-2:2016 (CAN FD)

microSD card slot support for up to 128 GB of storage (or the limit of newer SDHC cards). The removable?

card is formatted using FAT32 for PC compatibility

Battery backed real time clock (RTC).

第四代neoVI体系结构：性能超过早期设备的10倍

低功耗

电源：4.5-40V运行

LED薄膜键盘：10个全彩LED指示网络状态；2个LED用于传统状态；

2个用户按钮

温度范围：-40°C至 85°C

用于安全关闭数据记录器的车载UPS电源

车辆接头：26针外螺纹HD D-Sub和9针微型D-Sub

一年有限保修

现场可升级闪存固件

通用I/O:2个MISC IO（0-40V）-可配置为模拟/PWMIO

通用I/O速率报告间隔：10 Hz至1 kHz，或基于数字变化

微软认证的USB驱动程序

USB

主机，用于neoVI MIC GPS或为RAD Moon配件供电

隔离高速（480 Mb/s）USB

独立模式，包括脚本、接收消息、传输消息、表达式、I/O和传输层

J2534和RP1210 A/B兼容CAN/ISO15765-2:2016（CAN FD）

microSD卡插槽支持高达128 GB的存储空间（或较新SDHC卡的限制）。可移卡使用FAT32格式化，以实现PC兼容性

电池供电实时时钟（RTC）。
