插座式电源滤波器
Power Filters with IEC source terminals
产品特点 Features
uIEC标准插座一体化滤波器，输入端IEC插座，输出端焊片，结构紧凑，安装方便。
IEC connector integrative filters, easy to mount.
u可按不同性能，工作电流，电压，外形尺寸和端接方式等要求定制
Customization design for different requirements such as performance,rated current,rated viltage,shape dimention and termination methods
使用场合 Application
u用于各种电力电子设备，电子测量仪器 For electronic equipments and measuring instruments
技术参数 Technical Data
额定电压 Rated Voltage |
250VAC |
||
工作频率 Operating Frequency |
50/60Hz |
||
耐压试验Test Voltage |
线—线 L―L |
1768VDC |
1min |
线—地 L―G |
2000VAC |
1min |
|
气候类别Climatic category |
25/85/21 |
||
型号 |
额定电流 |
电路类型 |
最大漏电流 |
插入损耗（dB） 共模/差模（CM/DM） |
|||||||
频率（MHz） |
|||||||||||
0.10 |
0.15 |
0.50 |
1.0 |
5.0 |
10 |
20 |
30 |
||||
FSAI-1IL |
1 |
A |
0.3 |
22/10 |
23/12 |
37/30 |
45/42 |
51/52 |
56/56 |
62/56 |
65/60 |
FSAI-3IL |
3 |
20/8 |
21/9 |
35/21 |
45/38 |
51/46 |
56/51 |
62/56 |
65/60 |
||
FSAI-6IL |
6 |
12/5 |
13/6 |
28/18 |
35/23 |
49/38 |
50/46 |
51/51 |
55/56 |
||
FSA1J-1IL |
1 |
A1 |
22/10 |
23/12 |
37/30 |
45/42 |
51/52 |
56/56 |
62/56 |
65/60 |
|
FSA1J-3IL |
3 |
20/8 |
21/9 |
35/21 |
45/38 |
51/46 |
56/51 |
62/56 |
65/60 |
||
FSA1J-6IL |
6 |
12/5 |
13/6 |
28/18 |
35/23 |
49/38 |
50/46 |
51/51 |
55/56 |
||
FSDJ1-3IW |
3 |
D |
0.5 |
32/15 |
36/18 |
76/60 |
80/81 |
80/80 |
72/73 |
62/61 |
58/56 |
FSDJ1-6IW |
6 |
24/30 |
32/37 |
62/65 |
70/70 |
63/64 |
62/61 |
60/60 |
58/58 |
||
FSDK-10IL |
10 |
24/30 |
32/37 |
62/65 |
70/70 |
63/64 |
62/61 |
60/60 |
58/58 |
||
FSCK-10IL |
10 |
C |
27/40 |
32/39 |
39/50 |
59/63 |
65/58 |
63/54 |
62/53 |
61/56 |
|
FSAK-16IL |
16 |
A |
24/29 |
27/33 |
35/41 |
46/50 |
60/62 |
65/68 |
62/70 |
55/56 |
|

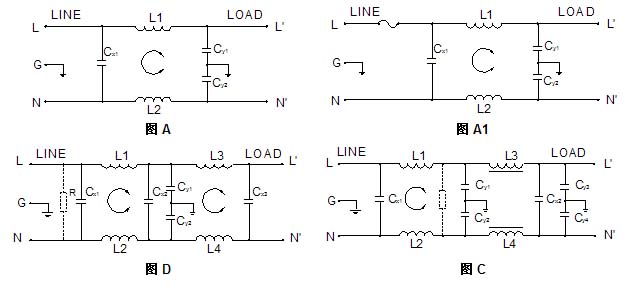

电路类型 Electrical schematics

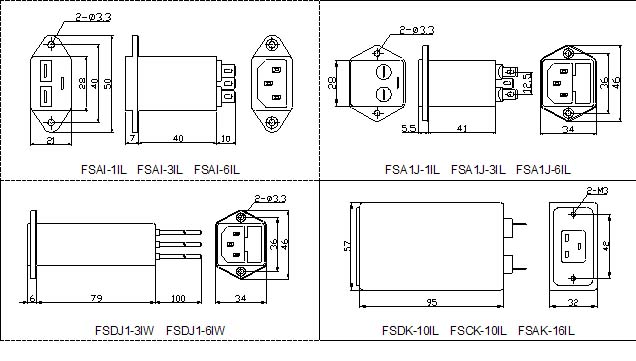

外形尺寸 Shape dimension
