军用方舱电源滤波器
Power filters for military shelters.
产品特点 Features
◆军用方舱电源滤波器依据GJB6109-2007《军用方舱通用规范》设计，抑制沿进出方舱电源线传导的电磁干扰，满足Ⅰ级、Ⅱ及和Ⅲ级屏蔽效能。
◆优异的宽频抑制特性，采用软电源线输入、输出方式，结构紧凑，安装方便
The shielding power filters have a good supper-ssion for the interference with the wide bandwidth,using the flexible cables for input and output,very compact and easy to mount
u可按不同性能，工作电流，电压，外形尺寸和端接方式等要求定制
Customization design for different requirements such as performance,rated current,rated viltage,shape dimention and termination methods
使用场合 Application
◆ 用于各种结构的军用方舱及屏蔽机柜。
For military shelters and shielded cabinets.
技术参数 Technical Data
军用方舱交流电源滤波器 |
|||
额定电压 Rated Voltage |
250VAC |
||
工作频率 Operating Frequency |
50/60/400Hz |
||
耐压试验 Test Voltage |
线—线 Line to line |
1500VDC |
1min |
线—地 Line to ground |
1500VAC |
1min |
|
绝缘电阻 Insulation resistance |
≥ |
||
气候类别Climatic category |
55/85/21 |
||
型号modle |
额定电流 Rated Current (A) |
线数 Number of lines |
最大漏电流 Leakage current: |
插入损耗 |
SP |
6 |
2 |
10 mA |
60dB,0.09～18000MHz |
SP |
10 |
|||
SP |
20 |
|||
SP |
30 |
|||
SP |
40 |
|||
SP |
50 |
|||
型号modle |
额定电流 Rated Current (A) |
线数 Number of lines |
最大漏电流 Leakage current: |
插入损耗 |
SP |
6 |
2 |
6mA |
50dB, 0.10～10000MHz |
SP |
10 |
|||
SP |
20 |
|||
SP |
30 |
|||
SP |
40 |
|||
SP |
50 |
军用方舱直流电源滤波器 |
|||
额定电压 Rated Voltage |
100VDC |
||
工作频率 Operating Frequency |
DC |
||
耐压试验 Test Voltage |
线—线 Line to line |
200VDC |
1min |
线—地 Line to ground |
500VDC |
1min |
|
绝缘电阻 Insulation resistance |
≥ |
||
气候类别Climatic category |
55/85/21 |
||
型号modle |
额定电流 Rated Current(A) |
线数 Number of lines |
插入损耗 |
SP |
6 |
2 |
60dB,0.09～18000MHz |
SP |
10 |
||
SP |
20 |
||
SP |
30 |
||
SP |
40 |
||
SP |
50 |
||
SP |
6 |
2 |
50dB, 0.10～10000MHz |
SP |
10 |
||
SP |
20 |
||
SP |
30 |
||
SP |
40 |
||
SP |
50 |
||

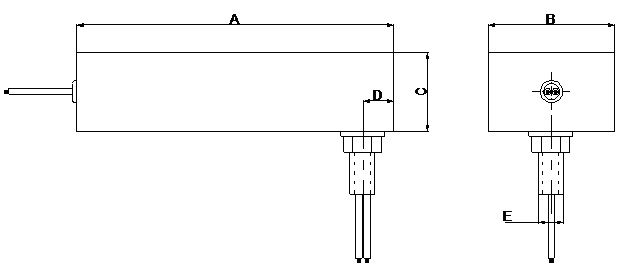

外形尺寸 Shape dimension
型号modle |
A |
B |
C |
D |
E |
SP |
110 |
80 |
50 |
15 |
M12 |
SP |
160 |
80 |
50 |
15 |
M12 |
SP |
200 |
80 |
50 |
20 |
M16 |
SP |
200 |
80 |
50 |
20 |
M16 |
SP |
240 |
100 |
70 |
20 |
M16 |
SP |
240 |
100 |
70 |
20 |
M16 |
SP |
110 |
80 |
50 |
15 |
M12 |
SP |
160 |
80 |
50 |
15 |
M12 |
SP |
200 |
80 |
50 |
20 |
M16 |
SP |
200 |
80 |
50 |
20 |
M16 |
SP |
240 |
100 |
70 |
20 |
M16 |
SP |
240 |
100 |
70 |
20 |
M16 |
SP |
110 |
80 |
50 |
15 |
M12 |
SP |
160 |
80 |
50 |
15 |
M12 |
SP |
200 |
80 |
50 |
20 |
M16 |
SP |
200 |
80 |
50 |
20 |
M16 |
SP |
240 |
100 |
70 |
20 |
M16 |
SP |
240 |
100 |
70 |
20 |
M16 |
SP |
110 |
80 |
50 |
15 |
M12 |
SP |
160 |
80 |
50 |
15 |
M12 |
SP |
200 |
80 |
50 |
20 |
M16 |
SP |
200 |
80 |
50 |
20 |
M16 |
SP |
240 |
100 |
70 |
20 |
M16 |
SP |
240 |
100 |
70 |
20 |
M16 |
