军用直流滤波器
Military DC power filters
产品特点 Features
u专为军用设备通过电磁兼容军标GJB151A/152A中的CE102设计，优异的共模、差模干扰抑制特性。
Designed for CE102 in the GJB151A/152A,excellent common and differential mode attenuation.
u可按不同性能，工作电流，电压，外形尺寸和端接方式等要求定制
Customization design for different requirements such as performance,rated current,rated viltage,shape dimention and termination methods
使用场合 Application
u抑制沿电源线传输的无线电干扰，适用于各种直流供电的军用设备
Suppress the radio interference along power line,design for DC power supply military systems
技术参数 Technical Data
型号modle |
额定 电流 Rated Current |
额定 电压 Rated Voltage |
工作 频率 Operating Frequency |
耐压试验 Test Voltage |
端接方式 Termination methods |
气候类别 Climatic category |
|
输入 Input |
输出 Output |
||||||
MDUA-1P |
1A |
100VDC |
DC |
200VDC, 1min(L―L) 500VDC, 1min(L―G) |
Φ1插针 |
Φ1插针 |
55/85/56 |
MDTB-1W |
1A |
UL电源线 |
UL电源线 |
||||
MDTB-3W |
3A |
UL电源线 |
UL电源线 |
||||
MDUB-1W |
1A |
UL电源线 |
UL电源线 |
||||
MDUC-3W |
3A |
UL电源线 |
UL电源线 |
||||
MDDB-1W |
1A |
UL电源线 |
UL电源线 |
||||
MDDC-3W |
3A |
UL电源线 |
UL电源线 |
||||
MDUD-6L |
6A |
焊片 |
焊片 |
||||
MDTD-10L |
10A |
焊片 |
焊片 |
||||
MDUP-10L |
10A |
焊片 |
焊片 |
||||
MDFE-6L |
6A |
焊片 |
焊片 |
||||
MDFE-10L |
10A |
焊片 |
焊片 |
||||
MDFF-20S |
20A |
螺栓 |
螺栓 |
||||
MDUS-20S |
20A |
螺栓 |
螺栓 |
||||
MDUF-30S |
30A |
螺栓 |
螺栓 |
||||
MDUG-50S |
50A |
螺栓 |
螺栓 |
||||
插入损耗 Insertion Loss in dB
— 共模（CM）,--- 差模（DM） CM/DM
50Ω测量系统,GB7343/CISPR NO.17出版物 Measured in 50 ohm system ,as GB7343 or CISPR NO.17
插入损耗 Insertion Loss in dB CM/DM |
||||||||||
频率（MHz） 型 号 |
0.01 |
0.05 |
0.10 |
0.15 |
0.50 |
1.0 |
5.0 |
10 |
20 |
30 |
MDUA-1P |
5/3 |
12/8 |
18/15 |
16/14 |
30/26 |
36/32 |
48/40 |
50/50 |
58/56 |
52/52 |
MDTB-1W |
10/12 |
20/18 |
21/36 |
22/41 |
67/80 |
76/75 |
62/72 |
61/66 |
58/61 |
56/52 |
MDTB-3W |
8/12 |
18/18 |
20/36 |
20/41 |
62/80 |
72/75 |
65/72 |
61/66 |
58/61 |
56/52 |
MDUB-1W |
18/19 |
28/36 |
41/51 |
53/63 |
74/80 |
72/76 |
71/70 |
72/63 |
66/58 |
56/56 |
MDUC-3W |
12/5 |
28/55 |
46/75 |
51/80 |
90/90 |
92/91 |
80/81 |
68/61 |
58/56 |
55/52 |
MDDB-1W |
13/12 |
52/18 |
72/52 |
74/56 |
91/92 |
90/89 |
72/76 |
65/70 |
62/68 |
62/63 |
MDDC-3W |
13/12 |
52/18 |
72/52 |
74/56 |
91/92 |
90/89 |
72/76 |
65/70 |
62/68 |
62/63 |
MDUD-6L |
16/14 |
31/38 |
39/50 |
55/64 |
67/66 |
68/65 |
71/72 |
71/68 |
63/62 |
60/58 |
MDTD-10L |
8/18 |
18/22 |
30/42 |
36/50 |
72/80 |
72/76 |
70/61 |
68/65 |
62/62 |
58/60 |
MDUP-10L |
16/14 |
31/38 |
39/50 |
55/64 |
67/66 |
68/65 |
71/72 |
71/68 |
63/62 |
60/58 |
MDFE-6L |
23/22 |
38/30 |
46/55 |
56/62 |
64/71 |
66/70 |
70/65 |
62/61 |
57/58 |
56/56 |
MDFE-10L |
21/18 |
36/26 |
42/53 |
52/62 |
62/70 |
65/66 |
69/67 |
60/60 |
58/56 |
53/55 |
MDFF-20S |
21/18 |
36/26 |
42/53 |
52/62 |
62/70 |
65/66 |
69/67 |
60/60 |
58/56 |
53/55 |
MDUS-20S |
18/13 |
26/21 |
31/53 |
40/62 |
52/70 |
61/62 |
68/62 |
65/61 |
56/56 |
58/52 |
MDUF-30S |
8/15 |
21/28 |
30/33 |
33/50 |
56/63 |
70/70 |
66/71 |
65/64 |
62/65 |
60/60 |
MDUG-50S |
18/13 |
26/21 |
31/53 |
40/62 |
52/70 |
61/62 |
68/62 |
65/61 |
56/56 |
58/52 |

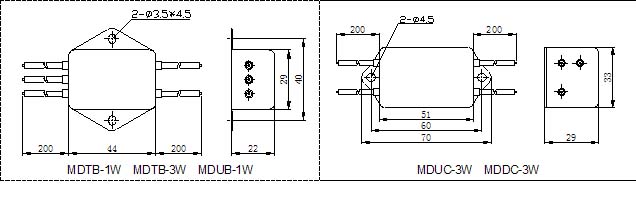

外形尺寸 Shape dimension
