三相四线电源滤波器
Three-phases+neutral Power Filters
产品特点 Features
u优异的共模、差模干扰抑制特性。
Excellent common and differential mode attenuation.
u常规通用，高性价比，结构紧凑，安装方便。
General purpose,high performance/cost ratio, very compact and easy to mount.
u可按不同性能，工作电流，电压，外形尺寸和端接方式等要求定制
Customization design for different requirements such as performance,rated current,rated viltage,shape dimention and termination methods
使用场合 Application
u抑制沿电源线传输的无线电干扰，适用于需要三相四线供电的电力电子设备。如开关电源，USP ，通讯设备，医疗设备和电力驱动设备
Suppress the radio interference along power lines,designed for Three-phases+neutral power supply systems and suited for switching-mode power supply,UPS,comunication systems,medical equipments and power driving systems
技术参数 Technical Data
三相四线系列 |
||||||||
额定电压 Rated Voltage |
440VAC |
|||||||
工作频率 Operating Frequency |
50/60Hz |
|||||||
耐 电 压 Withstanding voltage |
线―线 L―L |
2250VDC |
1min |
|||||
线—零 L―N |
1450VDC |
1min |
||||||
线—地 L―G |
2700VDC |
1min |
||||||
温度范围 temperature range |
-25--+85℃ |
|||||||
型号 modle |
额定电流 Rated Current (A) |
电路类型 Electrical Schematics |
端接方式 Termination methods |
最大漏电流 Leakage current:（mA） |
||||
输入 Input |
输出 Output |
|||||||
FTME-6L |
6 |
M |
焊片 |
焊片 |
0.3 |
|||
FTME-10L |
10 |
M |
焊片 |
焊片 |
0.3 |
|||
FTMF-20S |
20 |
M |
螺栓 |
螺栓 |
0.5 |
|||
FTMG-50S |
50 |
M |
螺栓 |
螺栓 |
0.5 |
|||
FTRG-20S |
20 |
R |
螺栓 |
螺栓 |
0.3 |
|||
FTMH-100S |
100 |
M |
螺栓 |
螺栓 |
0.3 |
|||
FTRH-50S |
50 |
R |
螺栓 |
螺栓 |
0.3 |
|||
FTMZ-200S |
200 |
M |
螺栓 |
螺栓 |
0.5 |
|||
FTRZ-100S |
100 |
R |
螺栓 |
螺栓 |
0.5 |
|||
FTRZ-200S |
200 |
R |
螺栓 |
螺栓 |
0.5 |
|||

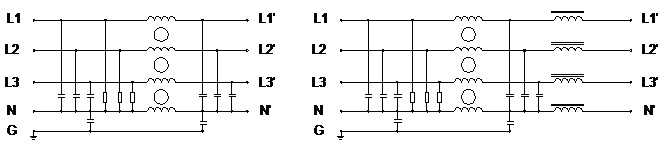

电路类型 Electrical schematics
外形尺寸 Shape dimension
